Double Deflection Grille

DESCRIPTION:

• The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.

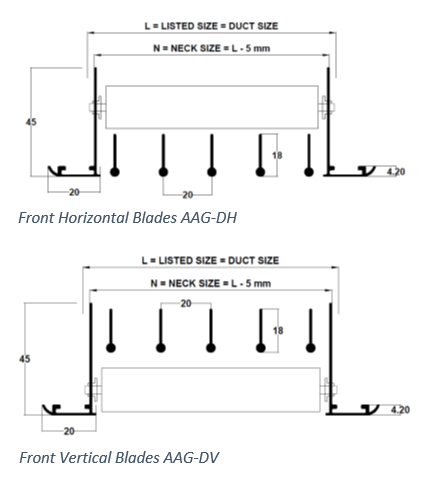

• Grilles have two sets parallel aerofoil blades with one set mounted horizontally on the front and other set vertically at the rear.
• Frame is separated from aerofoil deflection blades by nylon bushings. This method of assembly ensures quiet, smooth and rattle free operation.
• Deflection blades can be adjusted manually and individually, to provide air deflection in both horizontal and vertical planes.
• The frame is constructed with 45° corners and mechanically reinforced with corner cleats for rigidity and aesthetics.
• Grilles are rigidly fixed with opposed blade damper by rivets. Damper blade is gear operated from the face opening.
• Length from 0.2 meter to 3.6 meter is available as single piece.
• Listed Width in mm 100, 150, 200, 250, 300 mm.
• Non standard sizes available as an option.
