Model No. : AEG

SPECIFICATION:

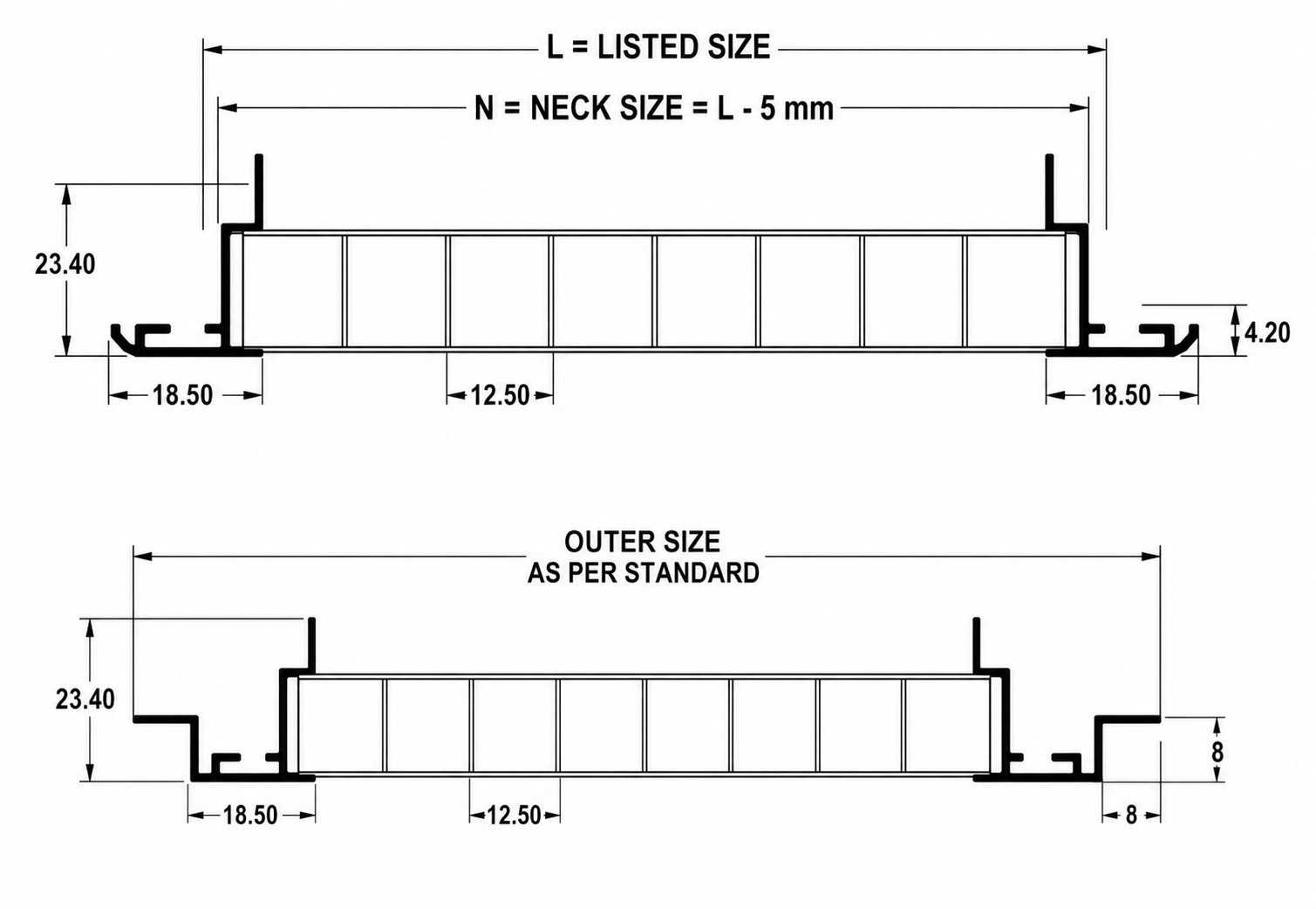

Extruded Aluminium Egg Crate Grille with 12.5 x 12.5 mm grid and 16mm flange as standard. Collar damper available as accessory for supply air.

DESCRIPTION:

Frame is constructed from high quality extruded aluminium profiles with the advantages of corrosion resistance and rigidity.
Aluminium egg crate core of 12.5 mm x 12.5 mm x 12.5 mm size is fixed rigidly to the frame.
Rigid construction provides noiseless performance.
Designed for return and exhaust applications for conditioned space.
More than 90% free area.

PRODUCT ORDER CHECKLIST:

Model	Grid Size	Flange	Ceiling	Accessories	Colour
AEG	12.5 × 12.5 mm	16 mm	Plain Tegular	Collar Damper (D)	Powder Coated
		30 mm			Mill Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS:

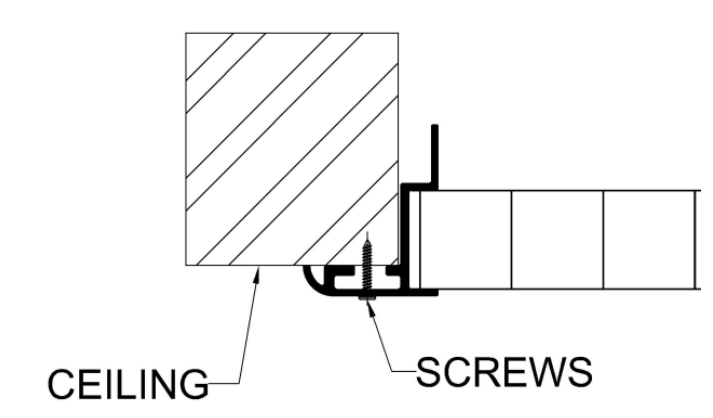

Option A: Screw on front side of flange

Option B: Screw through side of plane box

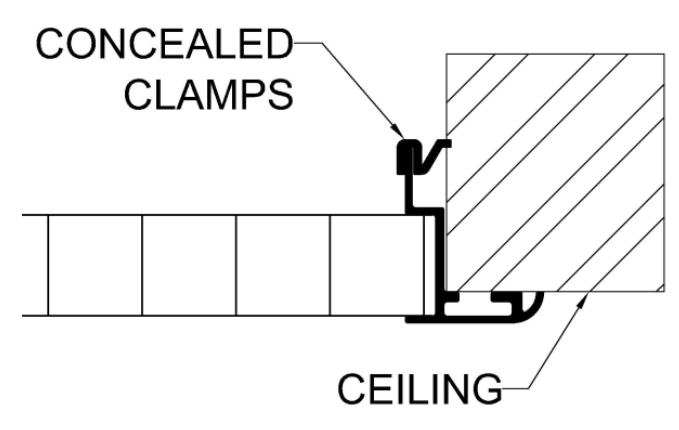

Option C: Optional â€˜Câ€™ Clamp can be provided For concealed fixing.

Option D: Placement of grille directly on the false
