Linear Bar Grille

DESCRIPTION:

• Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.

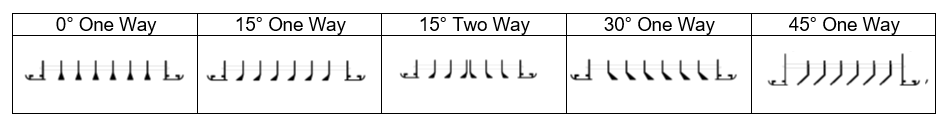

• Horizontal face bars with 0°/15°/30°/45° - 1 way or two way throw are fixed rigidly to the frame with round aluminium pipes.
• Grilles are fixed rigidly with opposed blade damper by rivets. This ensures positive control over the air stream. Damper blades can be gear operated from the face opening.
• For perfect unbroken appearance of continuous runs, alignment strips are provided as an option.
• Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.
• The frame is constructed with 45° corners and mechanically reinforced with corner cleats for rigidity and aesthetics.
• Length from 0.2 meter to 3.6 meter is available as single piece.
• Listed Width in mm 75, 100, 150, 200, 250, 300 mm.
• Non standard sizes available as option.
