Model No. : ALBG-C

SPECIFICATION:

Extruded Aluminium Linear Bar Grille with fixed Aerofoil Blades available in 0/15/30/45 degree deflection with rigid frame of 16mm flange as standard. Radius of curvature is made suitable to round ducts. Collar Damper available as accessory for Supply Air.

DESCRIPTION:

Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
Horizontal face bars with 0°, 15°-1 way throw and 15°-2 way throw, 30° are fixed rigidly to the frame with 6 mm pipes.
Grilles are fixed rigidly with opposed blade damper by grippers. This ensures positive control over the air stream. Damper blades can be gear operated from the face opening.
Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.

PRODUCT ORDER CHECKLIST:

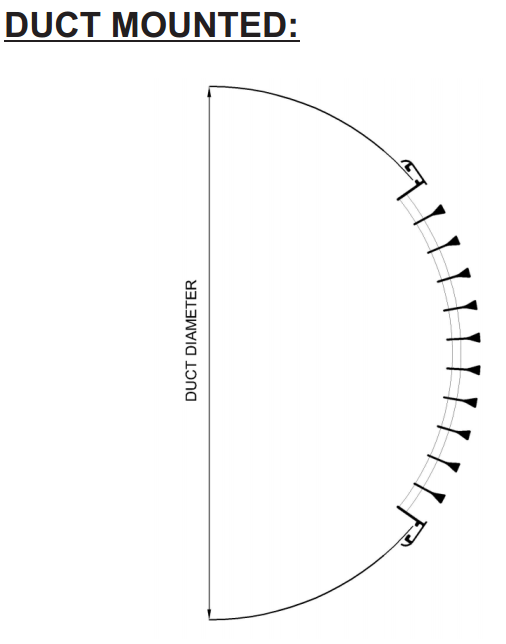

	Duct Mounted	Wall Mounted	Ceiling Mounted
Model	ALBG-CD	ALBG-CW	ALBG-CC
Bar	5 mm, 3 mm
Pitch	16 mm
Flange	16 mm, 30 mm	16 mm	16 mm
Deflection	0 Deg, 15 Deg	0 Deg	0 Deg
Accessories	Collar Damper	-	-

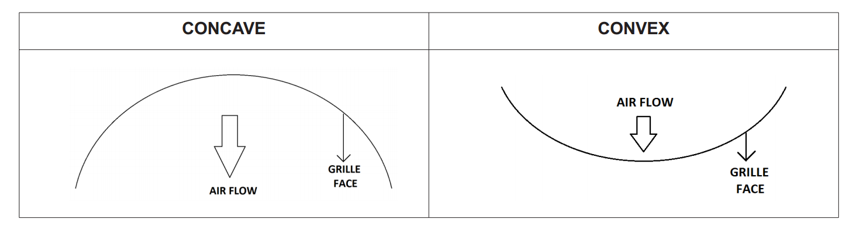

Diameter	Duct Dia: 200, 250, 300, 350, 400, 450, 500, 550, 600 mm	Template (with air flow direction)	Template (with air flow direction)
Colour	RAL Colours, Mill Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.
