Model No. : ALBG-T

SPECIFICATION:

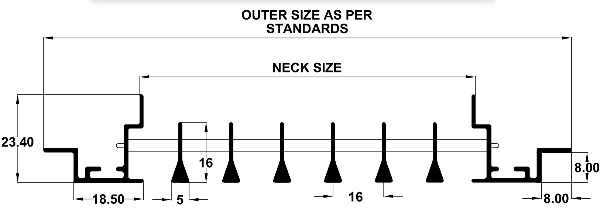

Extruded Aluminium Linear Bar Grille with fixed Aerofoil Blades available in 0/15/30 degree deflection with rigid frame of 16mm flange as standard. Frame has 8 mm step suitable to tegular/grid type false ceilings. Collar Damper available as accessory for Supply Air.

DESCRIPTION:

Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
Horizontal face bars with 0°, 15°-1 way throw and 15°-2 way throw, 30° are fixed rigidly to the frame with 6 mm pipes.
Grilles are fixed rigidly with opposed blade damper by grippers. This ensures positive control over the air stream. Damper blades can be gear operated from the face opening.
Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.
The frame is constructed with 45° corners and mechanically reinforced with corner cleats for rigidity and aesthetics.
Width made to suit standards of various grid/techzone false ceiling systems.

PRODUCT ORDER CHECKLIST:

Model	Bar	Pitch	Flange	Deflection	Accessories	Colour
ALBG-T	5 mm	13.5 mm	16 mm	0 Deg	Collar Damper (D)	Powder Coated
	3 mm	16 mm	30 mm	15 Deg		Anodised
		25 mm		30 Deg		Wood Finish
						Mill Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS:

For return air: Placement of grille directly on the false ceiling frame. No screws required. For supply air: Fixing of screws to side of frame through the duct/plenum.
