Model No. : ALBG-S

SPECIFICATION:

S.S grille, manufactured from grade 304/316, in 0 can be used in offshore applications, chemical facilities,waste treatment, sewage treatment plants and clean room applications.

DESCRIPTION:

Frame and blades can be made of Stainless Steel Grade 304 to 316.
Blades are welded to the frame. Weld joins are coated with rust poof paint.
Blades are available in 0 and 15 deflection, fixed at 12 mm pitch.

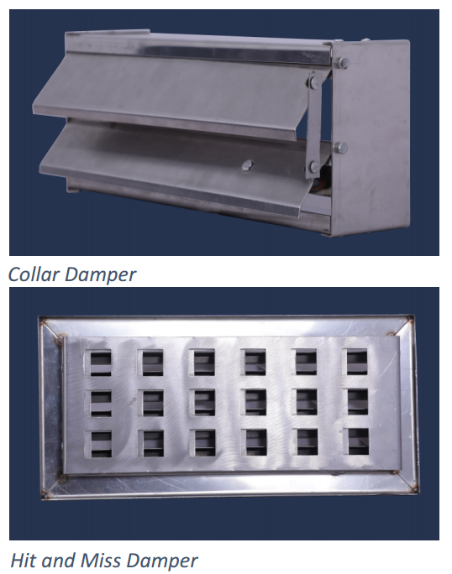

Hit and Miss damper or parallel blade collar damper made of Stainless Steel can be attached for supply air.
Frame is made of 1 mm thickness, and blades are made of 0.5 mm thickness

PRODUCT ORDER CHECKLIST:

Model	Grade	Gauge	Flange	Deflection	Accessories
ALBG-S	304	1.2 mm	16 mm	0 Deg	Collar Damper
	316	1.0 mm	30 mm		Hit and Miss Damper
		0.8 mm

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.
