Linear Flowbar Diffuser

DESCRIPTION:

• Air Master AFBD-3, SIDE-FLO model Flowbar Diffuser is specially designed for hidden flange application. Its enhanced performance coupled with special design that blends seamlessly into the ceiling makes it a fine choice for interior designers to suit contemporary architectural demands.

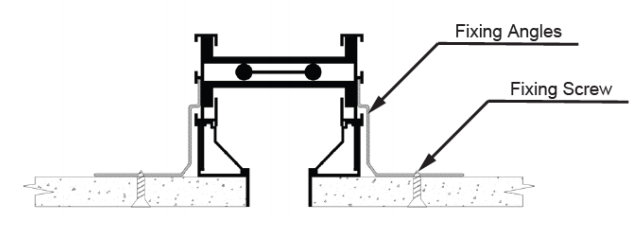

• It is designed for ceiling mounted applications. Side and center flange will remain invisible for both single and double slot opening. The view of a black opening into the ceiling gives a highclass finish to the building interiors.
• Flowbar Diffuser can easily handle huge air volumes per slot opening without increasing the pressure drop or NC level as compared to regular slot diffuser.

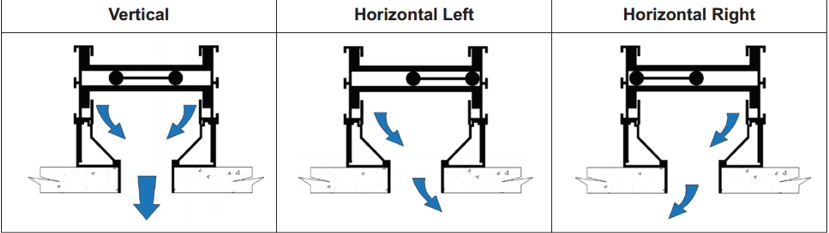

• SIDE-FLO option is equipped with an adjustable flat deflector profile. It can be moved horizontally on both directions (left or right) which helps in discharging air in a horizontal pattern. Air tends to attach itself with the ceiling due to Coanda effect as it travels horizontally.

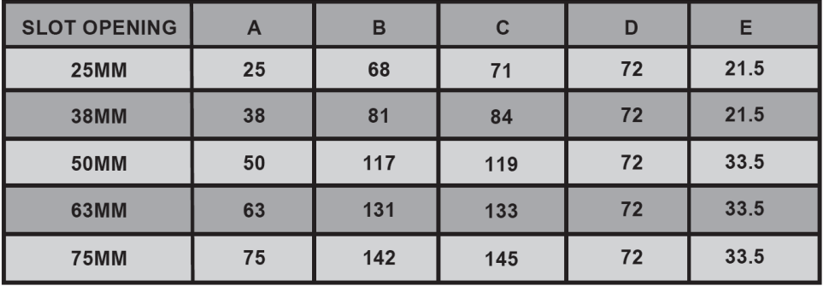

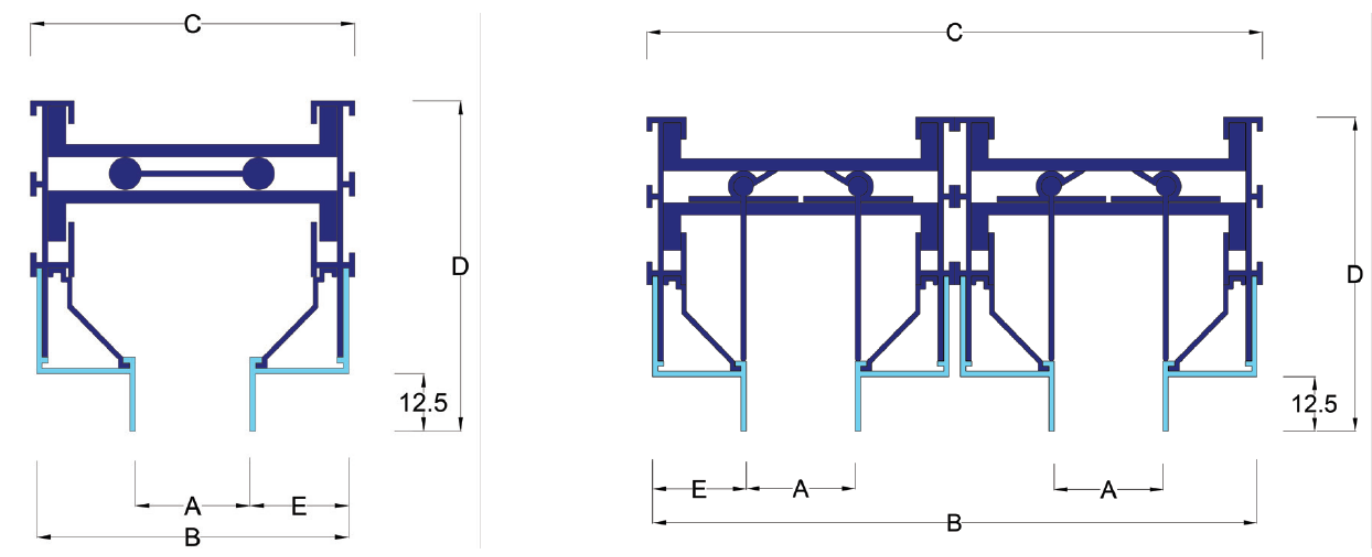

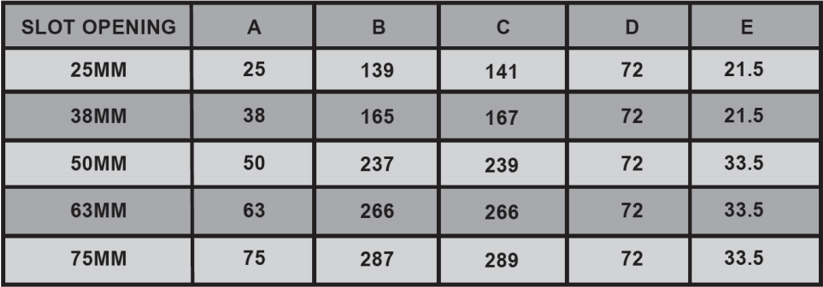

• Slot opening up to 2 slots are available. The deflector is sandwiched between U-Channels to control the direction of air flow. The U channels are spring loaded for smooth operation of deflector.
• Special side deflectors are provided to channel airflow smoothly towards the opening thereby reducing the pressure drop significantly and subsequently the noise level.
• White frame with black interior makes the finish more elegant.
• Applications include shopping malls, exhibition halls, office spaces, airports, hotels and so on.
