Linear Slot Diffuser - Plain

DESCRIPTION:

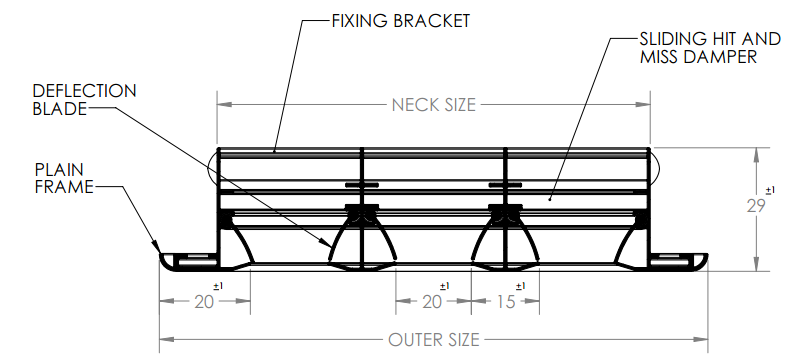

• Frame and deflection blades are made of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.

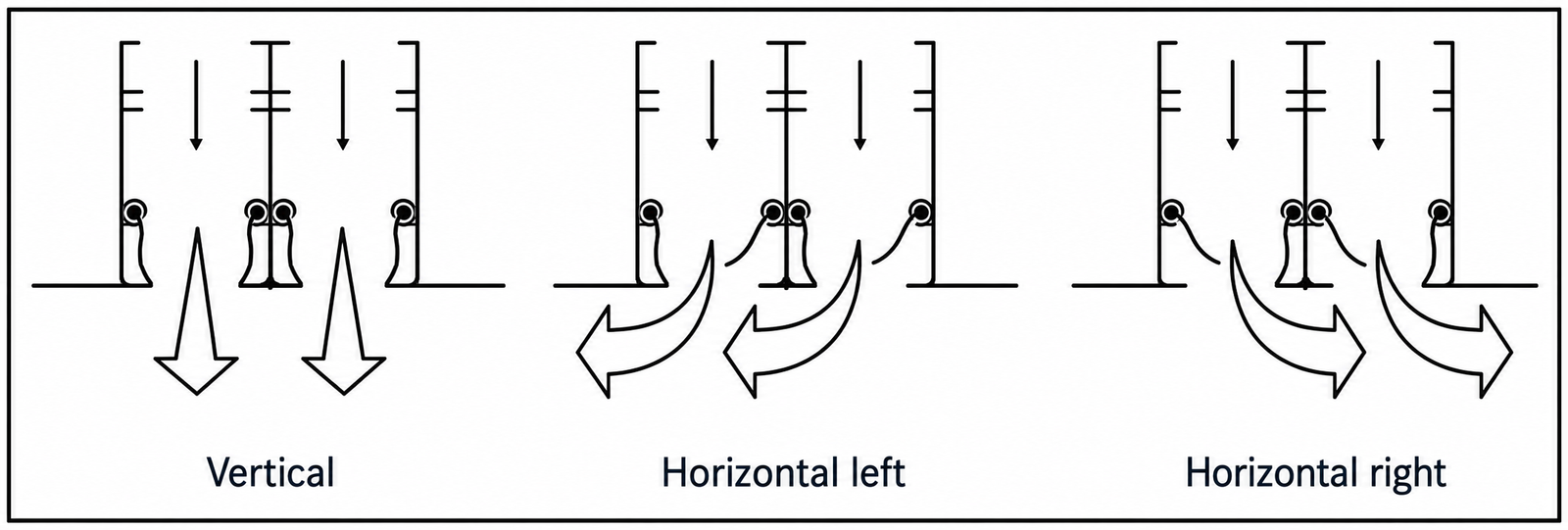

• Air distribution can be changed vertically or horizontally by means of deflection blades without changing the air flow rate. These blades can be fully adjusted from face opening.
• Air flow rate can be adjusted by fixing hit and miss damper at the rear side of the diffuser. Damper blades are adjusted from the face opening.
• Dampers are designed in a unique way that it can be used as an equalizing grid.
• Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.
• Positive alignment of adjacent sections can be made by using alignment strips.
• Suitable for installation for ceiling and sills.

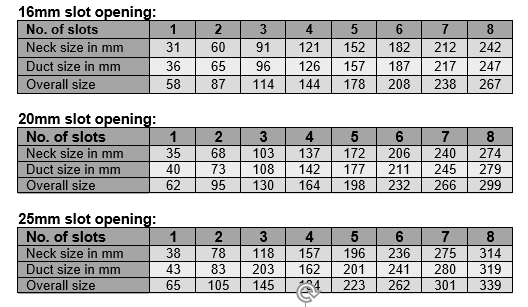

• Standard slot opening width are 16mm, 20mm, 25mm and non-standard sizes available as option.
• Number of slots available: 1, 2, 3, 4, 5, 6, 7, 8.
• Length: Up to 3.6 m available in a single piece.
• Optional accessories: Plenum box either un-lined, internally insulated or externally insulated.
