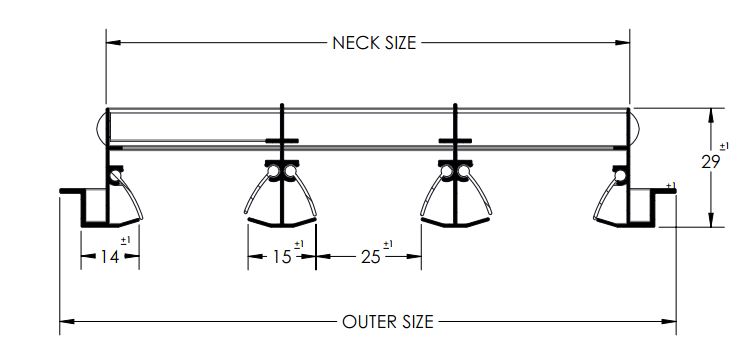

Linear Slot Diffuser - Tegular

DESCRIPTION:

• Frame and deflection blades are made of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
• Air distribution can be changed vertically or horizontally by means of deflection blades without changing the air flow rate. These blades can be fully adjusted from face opening.
• Air flow rate can be adjusted by fixing hit and miss damper at the rear side of the diffuser. Damper blades are adjusted from the face opening.
• Dampers are designed in a unique way that it can be used as an equalizing grid.
• Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.
• Suitable for installation for grid and techzone ceilings with 150mm centre to centre grid size.
• 3 Slot available as standard.
• Standard length of 1200mm
• Optional accessories: Plenum box either un-lined, internally insulated or externally insulated.
