Model No. : APCD

SPECIFICATION:

Extruded Aluminium Perforated Diffuser with rigid extruded frame and 1.50 mm thick aluminium perforated sheet as standard.

DESCRIPTION:

Frame is fabricated from high quality extruded aluminium profiles with the advantages of corrosion resistance and rigidity.
Perforated panel is rigidly fixed to the frame by rivets
Perforated panel can be made from 1.5 to 2 mm thick aluminium sheets.
Perforation hole diameter 6 mm as standard.
Optional accessories:
- Opposed blade collar damper for supply air
- Plenum box either un-lined, internally insulated or externally insulated.

PRODUCT ORDER CHECKLIST:

MODEL	PERFORATION	FLANGE	CEILING	ACCESSORIES	COLOUR
APD	6 mm (standard)	16mm	Plain	Collar Damper (D)	Powder Coated
	8 mm (optional)	30mm	Tegular	Plenum (P)	Mill Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS:

Option A: Screw on front side of flange

Option B: Screw through side of Plenum

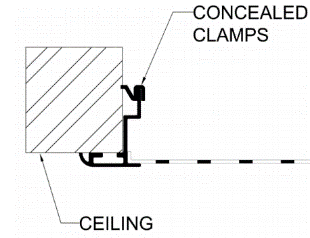

Option C: Optional â€˜Câ€™ Clamp can be provided for concealed fixing.

Option D: Placement of grille directly on the false ceiling frame.
