Model No. : ACD4R

SPECIFICATION:

Extruded aluminium rectangle ceiling diffuser with four way throw, and extruded aluminium core which is spring loaded and removable. Different construction available for flush type and tegular ceilings. Collar damper available as accessory for supply air.

DESCRIPTION:

The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
Diffusers shall be coned type with each cone manufactured by extruded aluminium louvered profiles, arranged in concentric cones to deflect air equally in four directions.
Damper is fixed rigidly to the frame by aluminium rivets. Fixing by spring clips as option.
Opposed blade damper is lever operated from the face opening of the diffuser after removing the internal core.
Damper blades are separated from its frame by nylon gears and bushes bushes.
This product is manufactured in four way throws to deflect air in all four directions.
Diffusers are available in rectangular sizes as per clients choice, with standard increments of 75mm in listed size.

PRODUCT ORDER CHECKLIST:

MODEL	OUTER SIZE	NECK SIZE	CEILING	ACCESSORIES	COLOUR
ACD4R	595x295	450x150	Plain / Tegular	Collar Damper (D)	Powder Coated
	1195x295	1050x150			Anodised
					Wood Finish
					Mill Finish
					Chrome Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS:

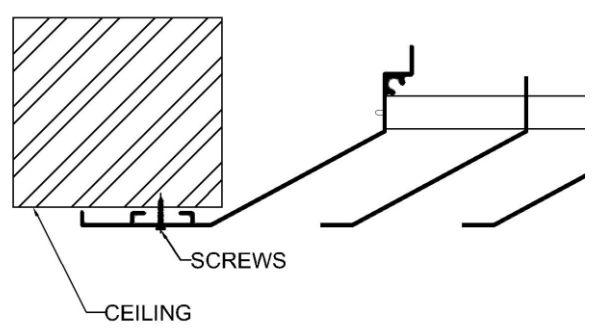

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of frame.

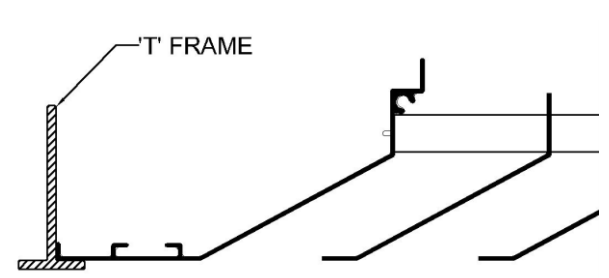

Option C: Placement of diffuser directly on the false ceiling frame.
