Model No. : ACDRP

SPECIFICATION:

Extruded aluminium rectangle ceiling diffuser with four way throw, and aluminium sheet plaque which is spring loaded and removable. Different construction available for flush type and tegular ceilings. Collar damper available as accessory for supply air.

DESCRIPTION:

The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
Diffusers shall be plaque type manufactured by aluminium sheets, designed to deflect air equally in four directions.
Damper is fixed rigidly to the frame by aluminium rivets. Fixing by spring clips as option.
Opposed blade damper is lever operated from the face opening of the diffuser after removing the internal core.
Damper blades are separated from its frame by nylon gears and bushes bushes.
Diffusers are available in rectangular sizes as per clients choice, with standard increments.

PRODUCT ORDER CHECKLIST:

Model	Outer Size	Neck Size	Frame	Ceiling	Accessories	Colour
ACDRP Plaque	595 × 295	450 × 150	Extruded	Plain / Tegular	Collar Damper (D)	Powder Coated
	1195 × 295	1050 × 150				Anodised
						Wood Finish
						Mill Finish
						Chrome Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS:

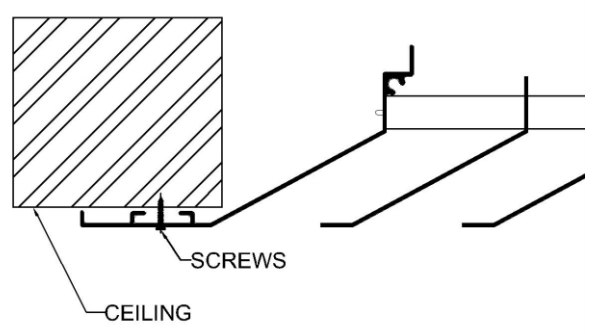

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of frame.

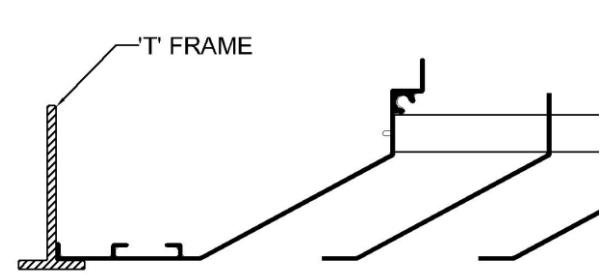

Option C: Placement of diffuser directly on the false ceiling frame.
