Single Deflection Grille

DESCRIPTION:

• The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
• Frame is separated from the aerofoil deflection blades with nylon bushings. This method of assembly assures quiet, smooth and rattle free operation.
• Deflection blades can be adjusted manually and individually in the horizontal or vertical plane to obtain optimum air distribution.
• The frame is constructed with 45° corners and mechanically reinforced with corner cleats for rigidity and aesthetics.
• Maximum effective pressure areas can be achieved when the blades are positioned at 0° horizontal position.
• Length from 0.2 meter to 3.6 meter is available as single piece.

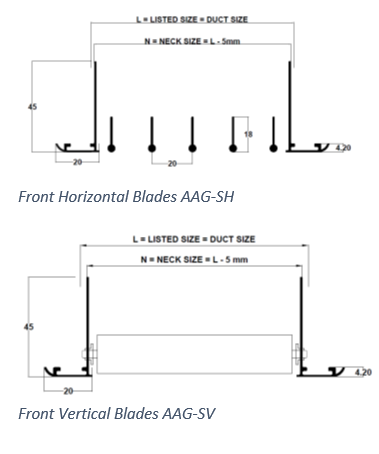

• Listed Width in mm 100, 150, 200, 250, 300 mm.
• Non standard sizes available as an option.
