Model No. : ACD1

SPECIFICATION:

Extruded aluminium square ceiling diffuser with one way throw, and extruded aluminium core which is spring loaded and removable. Different construction available for flush type and tegular ceilings. Collar damper available as accessory for supply air.

DESCRIPTION:

The frame and blades are made of high-quality extruded aluminium profiles, providing corrosion resistance and rigidity.
The louvered-type core is fixed to the frame using aluminium pins loaded with steel springs. The core is easily removable for flexible installation, maintenance and damper adjustment.
The damper is fixed rigidly to the frame using aluminium rivets. Spring clip fixing is also available as an option.
The opposed blade damper is lever-operated through the face opening of the diffuser after removing the internal core.
The damper blades are separated from the frame using nylon gears and bushes.
Discharges air horizontally in a one-way direction according to the pattern arrangement.
Available in rectangular sizes as an option.
Suitable for flush mounting in lay-in type ceilings.

PRODUCT ORDER CHECKLIST:

Model	Outer Size	Neck Size	Ceiling	Accessories	Colour
ACD1 One Way	595 × 595	450 × 450	Plain / Tegular	Collar Damper (D)	Powder Coated
	450 × 450	375 × 375			Anodised
	375 × 375	300 × 300			Wood Finish
	300 × 300	225 × 225			Mill Finish
	225 × 225	150 × 150			Chrome Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS:

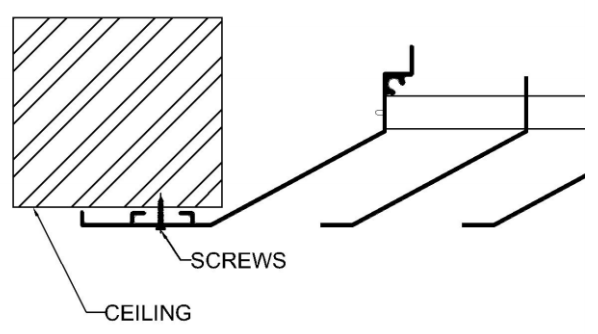

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of frame.

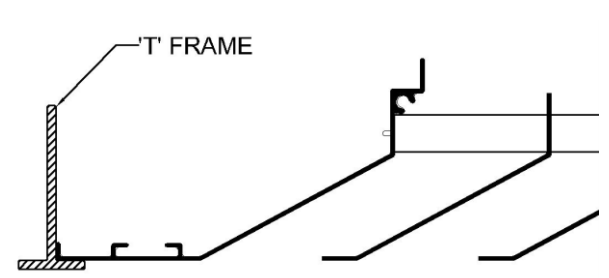

Option C: Placement of diffuser directly on the false ceiling frame.
