Model No. : ACDP

SPECIFICATION:

Extruded aluminium square ceiling diffuser with four way throw, and plaque aluminium core which is spring loaded and removable. Different construction available for flush type and tegular ceilings. Collar damper available as accessory for supply air.

DESCRIPTION:

The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
Diffusers shall be plaque manufactured by aluminium sheets designed to deflect air equally in four directions.
Plaque type core is fixed to the frame with aluminium pins loaded with steel springs. Core can be easily removable and interchangeable to allow for maximum flexibility in installation, maintenance and damper adjustment.
Damper is fixed rigidly to the frame by aluminium rivets. Fixing by spring clips as option.
Opposed blade damper is lever operated from the face opening of the diffuser after removing the internal core.
Damper blades are separated from its frame by nylon bushes
Discharge air equally in four horizontal directions.
Available in rectangular sizes as option.
Suitable for flush mounting in lay in type ceiling.

PRODUCT ORDER CHECKLIST:

Model	Outer Size	Neck Size	Frame	Ceiling	Accessories	Colour
ACDP Plaque	595 × 595	450 × 450	Extruded / Single Moulded Frame	Plain / Tegular	Collar Damper (D)	Powder Coated
	450 × 450	375 × 375				Anodised
	375 × 375	300 × 300				Wood Finish
	300 × 300	225 × 225				Mill Finish
	225 × 225	150 × 150				Chrome Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS:

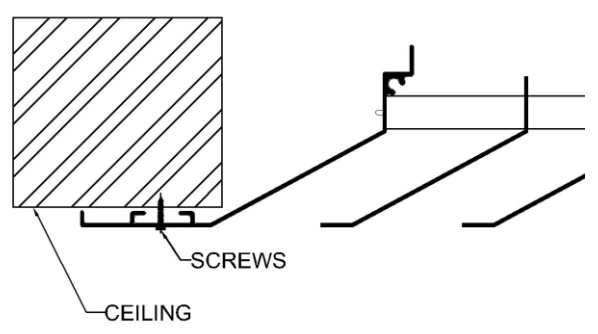

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of frame.

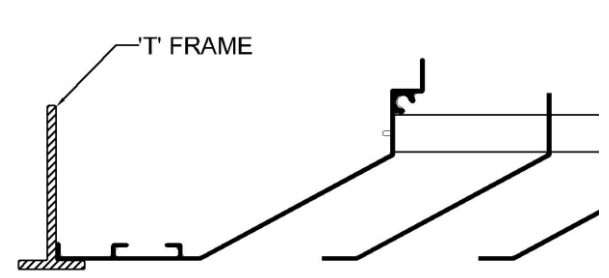

Option C: Placement of diffuser directly on the false ceiling frame.
