Square Ceiling Diffuser - Step Down

DESCRIPTION:

• The frame and blades are of high-quality extruded aluminium profiled construction, offering corrosion resistance and rigidity.
• Diffusers shall be coned type and stepped down incrementally, with each cone manufactured from extruded aluminium louvered profiles or one-piece die-formed aluminium sheet construction, arranged in concentric cones to deflect air equally in four directions.
• The cones are arranged in incremental steps facing downwards to maximize the airflow volume (CFM) while maintaining uniform flow directions.
• Louvered type core is fixed to the frame with aluminium pins loaded with steel springs. The core can be easily removed and interchanged for maximum flexibility during installation, maintenance, and damper adjustment.
• Damper is fixed rigidly to the frame using aluminium rivets. Spring clip fixing is available as an option.
• Opposed blade damper is lever-operated from the face opening of the diffuser after removing the internal core.
• Damper blades are separated from the frame by nylon bushes.
• Discharges air equally in four horizontal directions.

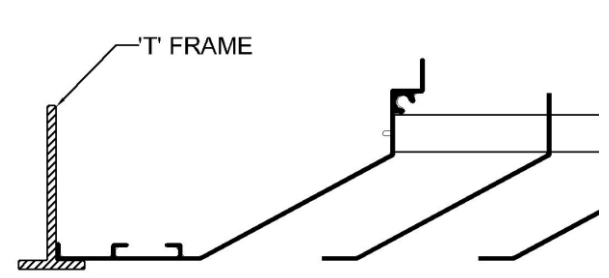

• Suitable for flush mounting in lay-in type ceilings.
