Model No. : ASD-VBG

SPECIFICATION:

High Capacity Circular Swirl Diffuser with fully adjustable pattern typically used for high ceiling applications are formed using single piece with adjustable metal vanes. Plenum available as accessory for supply air. Manual and motorized options available.

DESCRIPTION:

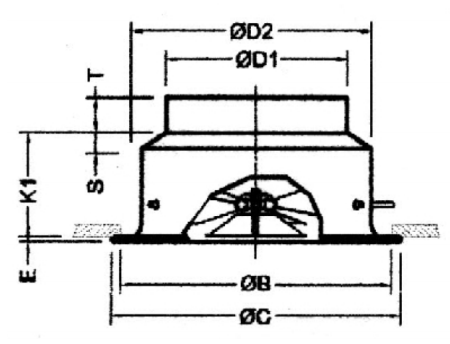

The diffuser is made of aluminium in single piece frame using forming methods.
The blades are made of high quality galvanized steel.
Easily adjustable metal blades provides vertical projection of air discharge all over the occupant area. The swirl diffuser is fully adjustable from open to close position.
The diffuser can be fixed upto a height of 4.5m.
Plenum box can be provided as option for supply air.
Actuator can be provided for motorized operation of the diffuser.

PRODUCT ORDER CHECKLIST:

MODEL	SIZE	PLENUM	OPERATION	COLOUR
ASD-VBG	250	With or Without Plenum	Manual	Powder Coated
	315		Motorised	Mill Finish
	400
	630

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

HVAC Manufacturing Excellence Since 1987

Ready to Partner with a Trusted HVAC Manufacturer?

Whether you're planning a commercial tower, airport, hospital, industrial facility, or residential development, Air Master delivers dependable HVAC products backed by nearly four decades of expertise.

Request a Quote Download Catalogue Contact Our Team

Air Master

Swirl Diffuser - High Volume Circular

SPECIFICATION:

DESCRIPTION:

ADDITIONAL DETAILS:

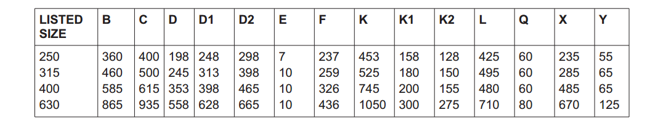

Standard Dimensions
