Floor Grille - Aluminium - Heavy Duty

DESCRIPTION:

• Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
• Structure is robustly constructed with face bars positioned in the frame.
• Face bars assembly is reinforced with steel rods to withstand heavy loads.
• Applicable for installation in gymnasium, sport halls, hospitals and computer rooms, sever rooms and data centres.

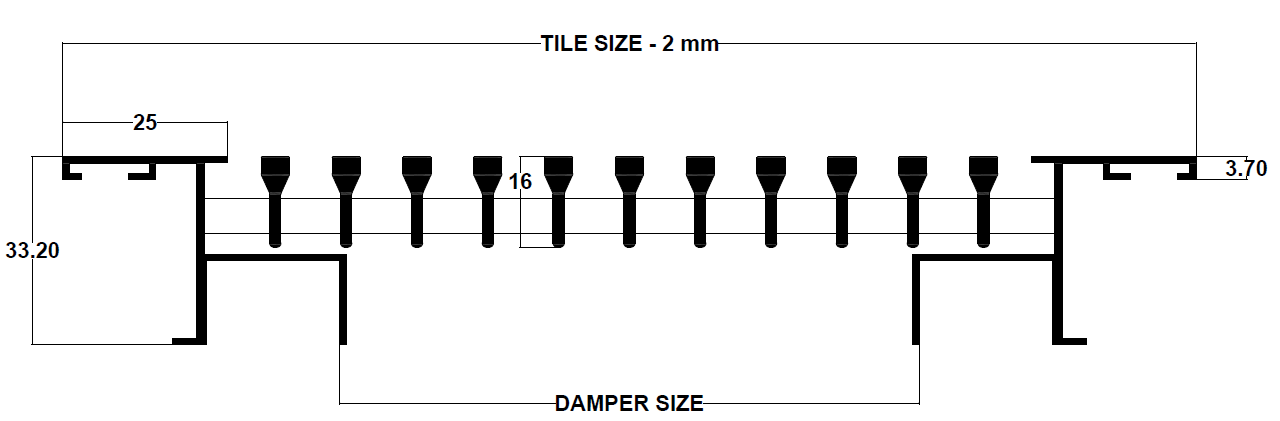

• A recess of 25 mm x 4 mm has to be provided around the grille, in the floor to install the grill flush with the floor (or) carpet level for carpeted floors. In case of raised floors, it can be installed as tile replacement.
• Grilles are fixed rigidly with opposed blade damper by rivets. This ensures positive control over the air stream. Damper blades can be gear operated from the face opening. Alternately, slotted Hit and miss damper can be provided on request.
• Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.
• Custom sizes can be made on request
